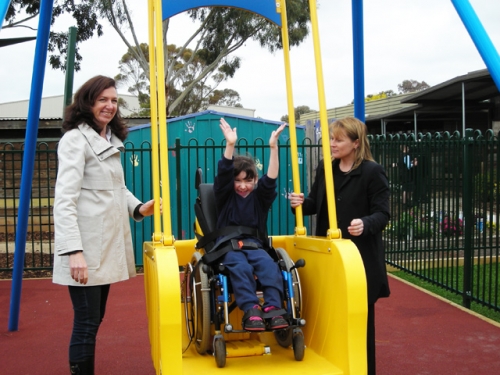

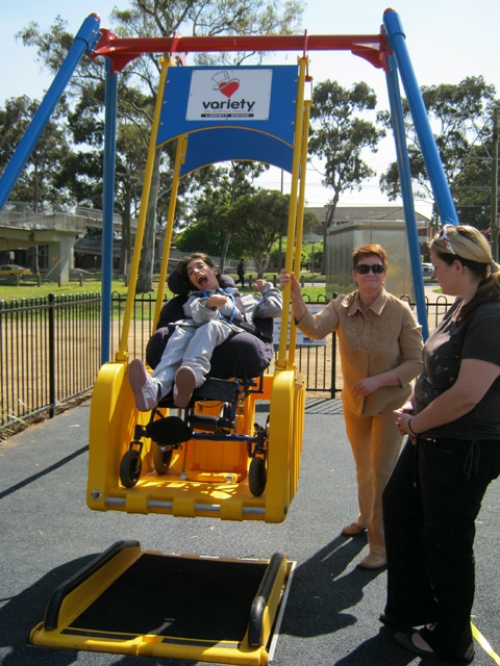

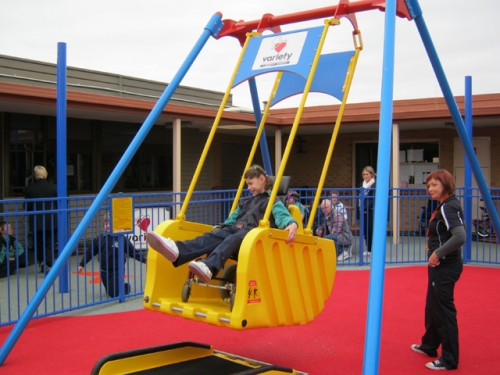

The world's safest and most recognised swing for children and adults in wheelchairs.

  • Meets stringent world safety standards
  • Easy to use and install
  • Fully locked when not in use
  • Proven long-term durability






Liberty Swing
Liberty Swing
Liberty Swing



Liberty Swing
Liberty Swing
Liberty Swing



Technical Fact Sheet – with US conversion

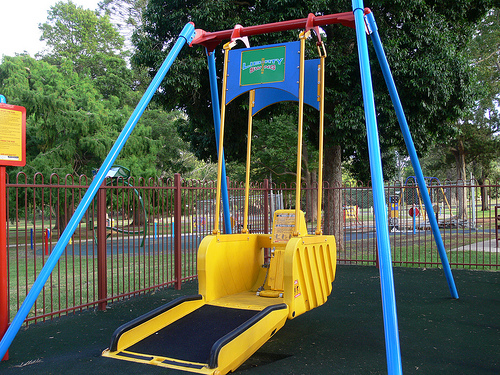

Swing measurements: 4.0 m (13.12 ft) long x 3.2 m (10.5 ft) wide; on/o device measures 1.2 m (3.9 ft). The Liberty Swing is 3.1 m (10.1 ft) at its highest point.
Area required: Minimum 27 sq m (290 sq ft) is required to meet Australian standards;
Width: 2.9 m (9.5 ft) between support posts;
Length: 3.8 m (12.47 ft) each side of crossbar 7.6 m (24.93 ft) total
Fall Zone/Height: The manufacturer recommends a fall height of 1.8 m (5.9 ft)
Delivery: Most deliveries are despatched from Australia within 6 weeks from date of order. The Liberty Swing is packaged for delivery weighing approx 360 kg (793.6 lb) net; with packaging, 380 kg (837.7 lb).
Swing Components/Locks:
  • Capsule with internal seat, on/o device lock, wheel locks, seat belt and seat belt anchor points, seat belt locking compartment
  • On/o device with torsion rod
  • Top swing cross bar
  • Capsule support arms (4)
  • Post legs (4) and extensions (6)
  • MLA key (2)
  • Signage:
    • Restricted area
    • How to Start/Finish Ride
    • Liberty Swing panels
Installation Instructions: Full Manual is supplied on order of the Liberty Swing and includes:
  • General assembly plan and side elevations
  • Installation instructions
  • Soft fall instructions
  • Components list
  • Suggested fence layout plan
  • Maintenance program
Australian Standards Compliance: AS4685:2004
AS 2555 Guide to Siting, Installation, Maintenance
AS/NZS 4486-1 Development, Installation, Inspection and Operation
US Standard The Liberty Swing is sold as ‘therapeutic equipment’ and has
incorporated safety components as far as possible to meet ASTM
requirements. ADA compatible.
European Standard EN1176 Certication granted October 2008

Information

Please feel free to contact us at +852 2416 8321 or via email info@deltason.com for further information and quotation.
